NAYLOR SPIRAL BUTTWELD PIPE
(ASTM A-139)
Sizes:
6" to 96" in diameter
Thicknesses:
10 gauge (.134) to 1/2” (.500)
Lengths:
Pipe cut to exact specified lengths or 20'0" industrial standard, 40'0", 50'0", 60'0" line pipe to 93'0" long.
NAYLOR LOCKSEAM SPIRALWELD PIPE
(ASTM A-211)
Sizes:
4" to 30" in diameter
Thicknesses:
14 gauge (.074) to 8 gauge (.164)
Lengths:
40’0” line pipe standard
20’0” industrial standard
Cut to exact specified lengths
SUPPLEMENTAL INFORMATION REQUIRED FOR ORDERING NAYLOR PIPE
Service:
State operating conditions
Material being conveyed
Temperature range
Pressure -- positive or vacuum
Location -- If above ground, state whether suspended or supported.
If below ground, give depth and type of fill.
Coatings:
Standard black mill coating
Outside only or inside and out
Red Iron Oxide
Outside only or inside and out
Galvanized
Epoxy type coatings
Fusion Bond Epoxy
Polyurethane
Other Coatings Available

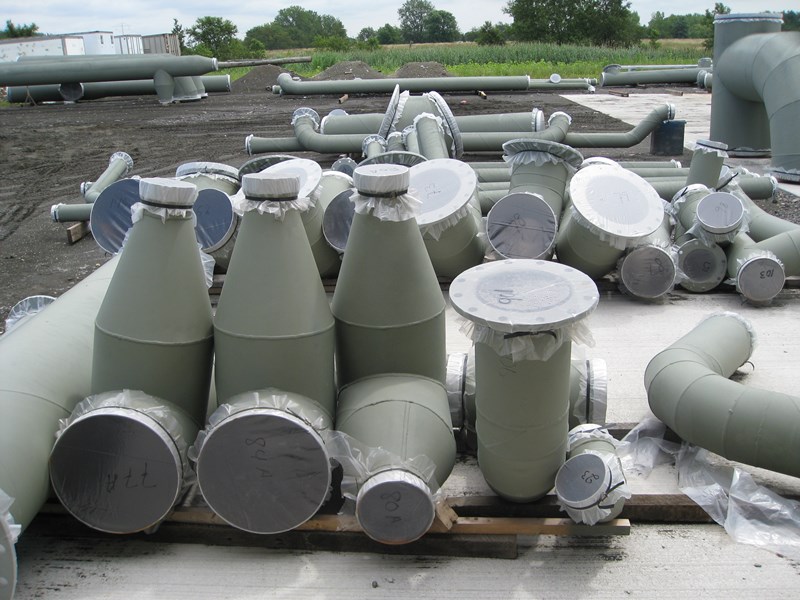

Fabrications:
All types of pipe and fitting fabrications, regardless of complexity, built to meet exact design specifications.
Linings:
Rubber
Cement
Plastic
Basalt
Synthetic Resin
Ceramic
Epoxy
Polyurethane
Fittings:
A complete line of welded steel fittings, standard or special.
Flanges:
ASME Plate Steel
Special Plates
SPS Plate Steel
Forgings
Connections:
All types of connections available including one-piece positive type Naylor Wedgelock coupling.
